IMD11

Time:2018-06-19


IMD11
Filter By Gauge (micron): 0.125~6.0
Filter By Finish: polished,polished
Filter By Color: Clear

Physical Parameters

Product Datasheet

Item

Property

Value

Unit

Test Method

Physical

Density

1.2

g/cm3

ISO 1183

Haze

<0.5

%

ASTM D1003

Light Transmission

89

%

ASTM D1003

Mechanical

Tensile Strength

60

MPa

ISO 527

Elongation

>100

%

ISO 527

Bend Strength

91

MPa

ISO 178

Tensile Modulus

2300

MPa

ISO 178

Surface tension

34

 dyncm

Test fluid

Electrical

Dielectric Constant

3

-

IEC60250

Resistant Puncture Voltage

30

MV/mm

IEC 60243

Surface resistivity

1.00E+16

Ω/square

IEC 60093

Volume resistivity

1.00E+17

Ω-cm

IEC 60093

Thermal

Coefficient of Thermal Expansion

5.8

×10-5/

ISO 11359

Thermal Conductivity Rate

0.2

W/(m*K)

ASTM D5470

Thermal Shrinkage

0.50.7

%

ASTM D1204

Tg

152

ISO306

Flammability

Grade of resistant flame

V-2/VTM-2

           E249605

Tip: This test data is for reference only, not as an absolute application index


Certification

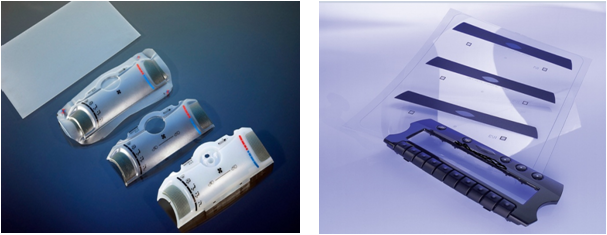

Product Application


Dimensions

OMAY can produce Polycarbonate film and sheet of various size (thickness0.125-4.0mm, width<1220mm) and colour according to customer's requirement.

PC Film

Model

size of metric system

size of british system

Packing Standard

Thickness
mm

Width×Length
mm×m

Thickness
inch

Width×Length
foot×foot

omay-IMD11

0.125

927×400

0.005″

3′×1312′

Roll

1220×400

4′×1312′

0.175

927×350

0.007″

3′×1148′

1220×350

4′×1148′

0.200

927×325

0.008″

3′×1066′

1220×325

4′×1066′

0.250

927×300

0.010″

3′×984′

1220×300

4′×984′

0.300

927×250

0.012″

3′×820′

1220×250

4′×820′

0.375

927×200

0.015″

3′×656′

1220×200

4′×656′

0.500

927×150

0.020″

3′×492′

1220×150

4′×492′


PC Sheet

Model

 size of metric system

 size of british system

 Packing Standard

Thickness
mm

Width×Length
mm×mm

 Thickness
inch

 Width×Length
foot×foot

omay-IMD11

0.30

915×1830

0.012″

3′×6′

Sheet

1000×2000

3.3′×6.6′

1220×2440

4′×8′

0.40

915×1830

0.016″

3′×6′

1000×2000

3.3′×6.6′

1220×2440

4′×8′

0.50

915×1220

0.0200″

3′×4′

915×1830

3′×6′

1000×2000

3.3′×6.6′

1220×1830

4′×6′

1220×2440

4′×8′

0.70

915×1220

0.0276″

3′×4′

915×1830

3′×6′

1000×2000

3.3′×6.6′

1220×1830

4′×6′

1220×2440

4′×8′

0.80

915×1220

0.0315″

3′×4′

915×1830

3′×6′

1000×2000

3.3′×6.6′

1220×1830

4′×6′

1220×2440

4′×8′

1.00

915×1220

0.0400″

3′×4′

915×1830

3′×6′

1000×2000

3.3′×6.6′

1220×1830

4′×6′

1220×2440

4′×8′

1.50

915×1220

0.0600″

3′×4′

915×1830

3′×6′

1000×2000

3.3′×6.6′

1220×1830

4′×6′

1220×2440

4′×8′

2.00

915×1220

0.0800″

3′×4′

1220×2440

4′×8′

2.50

915×1220

0.1000″

3′×4′

1220×2440

4′×8′

3.00

915×1220

0.1200″

3′×4′

1220×2440

4′×8′

4.00

915×1220

0.1600″

3′×4′

1220×2440

4′×8′
