RHA71

Time:2018-06-19


RHA71
Filter By Gauge (micron): 1000,1200,1300
Filter By Finish: Matte,Matte
Filter By Color: Customized

Physical Parameters

Item

Property

Test Value

Unit

Test Condition

Test Method

Physical

Properties

Density

1.2

g/cmP3P

-

ISO1183

Water Absorption

0.28

%

23℃24h

ISO 62

Mechanical

Properties

Yield Strength

70

MPa

23℃

ISO 527

Tensile Breaking Strength

60

MPa

23℃

ISO 527

Elongation at Break

100-120

%

-

ISO 527

Tensile Modulus

2210

MPa

-

ISO 527

Thermal

Properties

Thermal   Expansion Coefficient

5.8

×10P-5P/

-

ASTM E831

Thermal   Conductivity

0.2

W/(m*K)

-

ASTM D5470

Shrinkage

0.5

%

150

ASTM D1204

Electrical

Properties

Dielectric Strength

33

KV/mm

-

IEC 60243

Dielectric Constant

2.9

-

50 Hz

IEC 60250

2.8


1000 Hz

Volume Resistance

1.00E+17

Ω/square

-

ASTM D257

Surface   Resistance

1.00E+16

Ω-cm

-

ASTM D257

Flammability

Burning Class

S-3

-

-

DIN 5510

Smoke Class

SR-2

-

-

Dripping Class

ST-2

-

-

FED Value

0.04

-

-

Oxygen Index Test

39.8

%

-

TB/T 3237

Combustion Resistance Test

A

-

-

Smoke Density Test

Pass

-

-

Toxic Gas Analysis

Pass

-

-

Tip: This test is for reference only, not for absolute indicator of application.


Certification

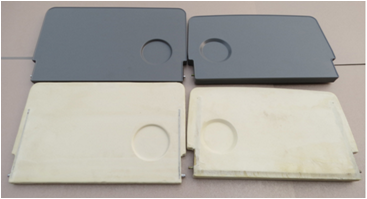

Product Application


Dimensions




 PC Sheet

Model

size of metric system

size of british system

Packing Standard

Thickness
mm

Width×Length
mm×mm

Thickness
inch

Width×Length
foot×foot

RHA71

1.00

475×600

0.040″

1.56′×1.97′

Sheet

1.20

490×590

0.048″

1.61′×1.93′

1.30

490×590

0.052″

1.61′×1.93′




MSDS
