OM11-Polycarbonate Film & Sheet Optical Grade for Coating and PVD-Products-GMC3A11,polycarbonate(PC) film, polycarbonate(PC) sheets optical grade, light guide plate/film(LGP/LGF), diffuser panel, High-speed Railway & Aircarft Plates, Flat panel display plates, fire retardant(FR) PC film

Filter By Gauge (micron)： 65,75,100,125,175,250,375,500,760,800,1000,1200,1500,2000,3000,4000,5000,6000

Filter By Finish： polished,polished

Filter By Color： Clear

Add Cart

Physical Parameters

Item	Property	Value	Unit	Test Method
Physical	Density	1.2	g/cm3	ISO 1183
	Haze	<0.5	%	ASTM D1003
	Light Transmission	89	%	ASTM D1003
Mechanical	Tensile Strength	60	MPa	ISO 527
	Elongation	>100	%	ISO 527
	Bend Strength	91	MPa	ISO 178
	Tensile Modulus	2300	MPa	ISO 178
	Surface tension	≥34	dyn／cm	Test fluid
Electrical	Dielectric Constant	3	-	IEC60250
	Resistant Puncture Voltage	30	MV/mm	IEC 60243
	Surface resistivity	1.00E+16	Ω/square	IEC 60093
	Volume resistivity	1.00E+17	Ω-cm	IEC 60093
Thermal	Coefficient of Thermal Expansion	5.8	×10^-5/℃	ISO 11359
	Thermal Conductivity Rate	0.2	W/(m*K)	ASTM D5470
	Thermal Shrinkage	0.5～0.7	%	ASTM D1204
	Tg	152	℃	ISO306
Flammability	Grade of resistant flame	V-2/VTM-2	E249605

Tip: This test data is for reference only, not as an absolute application index

Download

Certification

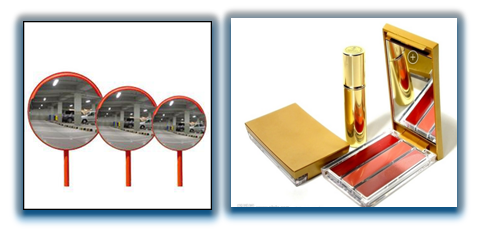

Product Application

Dimensions

OMAY can produce Polycarbonate film and sheet of various size (thickness0.125-4.0mm, width<1220mm) and colour according to customer's requirement.

PC Film

Model	size of metric system		size of british system		Packing Standard
	Thickness mm	Width×Length mm×m	Thickness inch	Width×Length foot×foot
OM11	0.125	927×400	0.005″	3′×1312′	Roll
		1220×400		4′×1312′
	0.175	927×350	0.007″	3′×1148′
		1220×350		4′×1148′
	0.200	927×325	0.008″	3′×1066′
		1220×325		4′×1066′
	0.250	927×300	0.010″	3′×984′
		1220×300		4′×984′
	0.300	927×250	0.012″	3′×820′
		1220×250		4′×820′
	0.375	927×200	0.015″	3′×656′
		1220×200		4′×656′
	0.500	927×150	0.020″	3′×492′
		1220×150		4′×492′

PC Sheet

Model	size of metric system		size of british system		Packing Standard
Model	Thickness mm	Width×Length mm×mm	Thickness inch	Width×Length foot×foot	Packing Standard
OM11	0.30	915×1830	0.012″	3′×6′	Sheet
		1000×2000		3.3′×6.6′
		1220×2440		4′×8′
	0.40	915×1830	0.016″	3′×6′
		1000×2000		3.3′×6.6′
		1220×2440		4′×8′
	0.50	915×1220	0.0200″	3′×4′
		915×1830		3′×6′
		1000×2000		3.3′×6.6′
		1220×1830		4′×6′
		1220×2440		4′×8′
	0.70	915×1220	0.0276″	3′×4′
		915×1830		3′×6′
		1000×2000		3.3′×6.6′
		1220×1830		4′×6′
		1220×2440		4′×8′
	0.80	915×1220	0.0315″	3′×4′
		915×1830		3′×6′
		1000×2000		3.3′×6.6′
		1220×1830		4′×6′
		1220×2440		4′×8′
	1.00	915×1220	0.0400″	3′×4′
		915×1830		3′×6′
		1000×2000		3.3′×6.6′
		1220×1830		4′×6′
		1220×2440		4′×8′
	1.50	915×1220	0.0600″	3′×4′
		915×1830		3′×6′
		1000×2000		3.3′×6.6′
		1220×1830		4′×6′
		1220×2440		4′×8′
	2.00	915×1220	0.0800″	3′×4′
	2.00	1220×2440	0.0800″	4′×8′
	2.50	915×1220	0.1000″	3′×4′
	2.50	1220×2440	0.1000″	4′×8′
	3.00	915×1220	0.1200″	3′×4′
	3.00	1220×2440	0.1200″	4′×8′
	4.00	915×1220	0.1600″	3′×4′
	4.00	1220×2440	0.1600″	4′×8′
