OM81

Time:2018-06-19


OM81
Filter By Gauge (micron): 50~6000
Filter By Finish: polished,polished
Filter By Color: Clear

Physical Parameters

Property

Standard Value

Unit

Test condition

Test standard

Optical
  Properties

Haze

<0.5

%

-

ASTM D1003

Transmittance

≥90

%

-

ASTM D1003

Physical
  Properties

Density

1.2

g/cm3

-

ISO 1183

Pencil Hardness

HB~H

-

1000g

ASTM D3363

Abrasion Resistance

No Damage

-

0000# steel wool, with 250g/cm2 pressure, 5cm stroke   reciprocating 25 times

-

Hot Water Resistance

No Change

-

80℃hot water×10min

-

Moisture Resistance

No Change

-

70℃×80%RH×48h

-

Heat Resistance

No Change

-

80℃×40min

-

Low Temperature Resistance

No Change

-

-30℃×10h

-

Cold & Heat Cycle Test

No Change

-

-30℃×6h←→23℃×3h

10 cycles

-

Adhesion

No Detaching


Cross-hatching test

3M tape (5times)

-

Mechanical
  Properties

Tensile Strength

60

MPa

-

ISO 527

Flexural Strength

85

MPa

-

ISO 178

Chemical
  Resistance

Ethanol Resistance

No Change

-

Coated sample hardening layer wiped with absorbent   cotton ball fully immersed in test solution, then sealed with PE film, left   at room temperature for 24 h, rinsed with pure water, then observation

-

Weak Acid Resistance0.5%

No Change

-

-

Salt Water Resistance

5%

No Change

-

-

Flammability

V-2/VTM-2

E249605

Tip: This test is for reference only, not for absolute indicator of application.


Certification

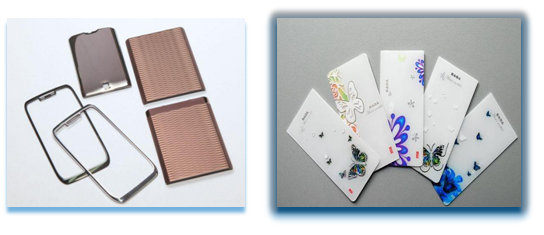

Product Application


Dimensions

OMAY can produce Polycarbonate film and sheet of various size (thickness0.125-4.0mm, width<1220mm) and colour according to customer's requirement.

PC Film

Model

size of metric system

size of british system

Packing Standard

Thickness
mm

Width×Length
mm×m

Thickness
inch

Width×Length
foot×foot

OM81

0.125

927×400

0.005″

3′×1312′

Roll

1220×400

4′×1312′

0.175

927×350

0.007″

3′×1148′

1220×350

4′×1148′

0.200

927×325

0.008″

3′×1066′

1220×325

4′×1066′

0.250

927×300

0.010″

3′×984′

1220×300

4′×984′

0.300

927×250

0.012″

3′×820′

1220×250

4′×820′

0.375

927×200

0.015″

3′×656′

1220×200

4′×656′

0.500

927×150

0.020″

3′×492′

1220×150

4′×492′


PC Sheet

Model

 size of metric system

 size of british system

 Packing Standard

Thickness
mm

Width×Length
mm×mm

 Thickness
inch

 Width×Length
foot×foot

OM81

0.30

915×1830

0.012″

3′×6′

Sheet

1000×2000

3.3′×6.6′

1220×2440

4′×8′

0.40

915×1830

0.016″

3′×6′

1000×2000

3.3′×6.6′

1220×2440

4′×8′

0.50

915×1220

0.0200″

3′×4′

915×1830

3′×6′

1000×2000

3.3′×6.6′

1220×1830

4′×6′

1220×2440

4′×8′

0.70

915×1220

0.0276″

3′×4′

915×1830

3′×6′

1000×2000

3.3′×6.6′

1220×1830

4′×6′

1220×2440

4′×8′

0.80

915×1220

0.0315″

3′×4′

915×1830

3′×6′

1000×2000

3.3′×6.6′

1220×1830

4′×6′

1220×2440

4′×8′

1.00

915×1220

0.0400″

3′×4′

915×1830

3′×6′

1000×2000

3.3′×6.6′

1220×1830

4′×6′

1220×2440

4′×8′

1.50

915×1220

0.0600″

3′×4′

915×1830

3′×6′

1000×2000

3.3′×6.6′

1220×1830

4′×6′

1220×2440

4′×8′

2.00

915×1220

0.0800″

3′×4′

1220×2440

4′×8′

2.50

915×1220

0.1000″

3′×4′

1220×2440

4′×8′

3.00

915×1220

0.1200″

3′×4′

1220×2440

4′×8′

4.00

915×1220

0.1600″

3′×4′

1220×2440

4′×8′
