G11

Time:2018-07-01


G11
Filter By Gauge (micron): 50,125,250,375,500,760
Filter By Finish: Polished,polished
Filter By Color: Clear

Physical Parameters



Item

Property

Value

Unit

Test Method

Physical

Density

1.2

g/cm3

ISO 1183

Haze

<0.5

%

ASTM D1003

Light Transmission

89

%

ASTM D1003

Mechanical

Tensile Strength

60

MPa

ISO 527

Elongation

>100

%

ISO 527

Bend Strength

91

MPa

ISO 178

Tensile Modulus

2300

MPa

ISO 178

Surface tension

34

 dyncm

Test fluid

Electrical

Dielectric Constant

3

-

IEC60250

Resistant Puncture Voltage

30

MV/mm

IEC 60243

Surface resistivity

1.00E+16

Ω/square

IEC 60093

Volume resistivity

1.00E+17

Ω-cm

IEC 60093

Thermal

Coefficient of Thermal Expansion

5.8

×10-5/

ISO 11359

Thermal Conductivity Rate

0.2

W/(m*K)

ASTM D5470

Thermal Shrinkage

0.50.7

%

ASTM D1204

Tg

152

ISO306

Flammability

Grade of resistant flame

V-2/VTM-2

           E249605

Tip: This test data is for reference only, not as an absolute application index


Certification

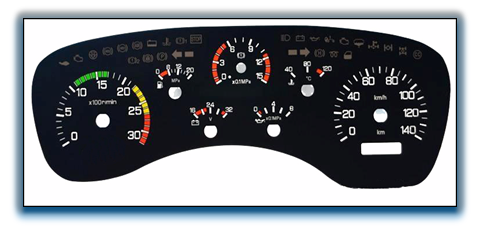

Product Application



Dimensions


PC Film

Model

size of metric system

size of british system

Packing Standard

Thickness
mm

Width×Length
mm×m

Thickness
inch

Width×Length
foot×foot

omay-G11

0.125

927×400

0.005″

3′×1312′

Roll

1220×400

4′×1312′

0.175

927×350

0.007″

3′×1148′

1220×350

4′×1148′

0.200

927×325

0.008″

3′×1066′

1220×325

4′×1066′

0.250

927×300

0.010″

3′×984′

1220×300

4′×984′

0.300

927×250

0.012″

3′×820′

1220×250

4′×820′

0.375

927×200

0.015″

3′×656′

1220×200

4′×656′

0.500

927×150

0.020″

3′×492′

1220×150

4′×492′


PC Sheet

Model

 size of metric system

 size of british system

 Packing Standard

Thickness
mm

Width×Length
mm×mm

 Thickness
inch

 Width×Length
foot×foot

omay-G11

0.30

915×1830

0.012″

3′×6′

Sheet

1000×2000

3.3′×6.6′

1220×2440

4′×8′

0.40

915×1830

0.016″

3′×6′

1000×2000

3.3′×6.6′

1220×2440

4′×8′

0.50

915×1220

0.0200″

3′×4′

915×1830

3′×6′

1000×2000

3.3′×6.6′

1220×1830

4′×6′

1220×2440

4′×8′

0.70

915×1220

0.0276″

3′×4′

915×1830

3′×6′

1000×2000

3.3′×6.6′

1220×1830

4′×6′

1220×2440

4′×8′

0.80

915×1220

0.0315″

3′×4′

915×1830

3′×6′

1000×2000

3.3′×6.6′

1220×1830

4′×6′

1220×2440

4′×8′

1.00

915×1220

0.0400″

3′×4′

915×1830

3′×6′

1000×2000

3.3′×6.6′

1220×1830

4′×6′

1220×2440

4′×8′

1.50

915×1220

0.0600″

3′×4′

915×1830

3′×6′

1000×2000

3.3′×6.6′

1220×1830

4′×6′

1220×2440

4′×8′

2.00

915×1220

0.0800″

3′×4′

1220×2440

4′×8′

2.50

915×1220

0.1000″

3′×4′

1220×2440

4′×8′

3.00

915×1220

0.1200″

3′×4′

1220×2440

4′×8′

4.00

915×1220

0.1600″

3′×4′

1220×2440

4′×8′
