ST99

Time:2018-06-19


ST99
Filter By Gauge (micron): 125,250,375,430,500
Filter By Finish: polished,polished
Filter By Color: Smoky

Physical Parameters

Item

Property

Value

Unit

Test Method

Physical

Density

1.2

g/cm3

ISO 1183

Haze

1530

%

ASTM D1003

Light Transmission

3050

%

ASTM D1003

Mechanical

Tensile Strength

60

MPa

ISO 527

Elongation

>100

%

ISO 527

Bend Strength

91

MPa

ISO 178

Tensile Modulus

2300

MPa

ISO 178

Surface tension

34

 dyncm

Test fluid

Electrical

Dielectric Constant

3

-

IEC60250

Resistant Puncture Voltage

30

MV/mm

IEC 60243

Surface resistivity

1.00E+16

Ω/square

IEC 60093

Volume resistivity

1.00E+17

Ω-cm

IEC 60093

Thermal

Coefficient of Thermal Expansion

5.8

×10-5/

ISO 11359

Thermal Conductivity Rate

0.2

W/(m*K)

ASTM D5470

Thermal Shrinkage

0.50.7

%

ASTM D1204

Tg

152

ISO306

Flammability

Grade of resistant flame

V-2/VTM-2

           E249605

Tip: This test data is for reference only, not as an absolute application index


Certification

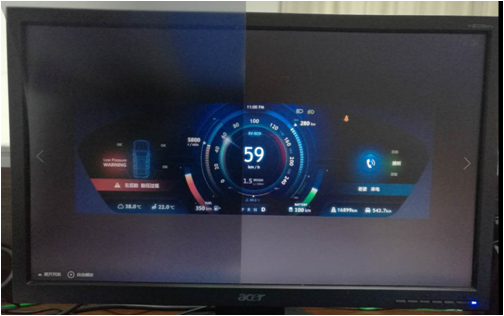

Product Application


Dimensions

OMAY can produce Polycarbonate film and sheet of various size (thickness0.125-4.0mm, width<1220mm) and colour according to customer's requirement.

PC Film

Model

 size of metric system

size of british system

Packing Standard

Thickness
mm

Width×Length
mm×m

Thickness
inch

Width×Length
foot×foot



omay -ST99

0.100

930×500

0.004″

3′×1640′

Roll

1220×500

4′×1640′

0.125

930×400

0.005″

3′×1312′

1220×400

4′×1312′

0.175

930×350

0.007″

3′×1148′

1220×350

4′×1148′

0.250

930×300

0.010″

3′×984′

1220×300

4′×984′

0.375

930×200

0.015″

3′×656′

1220×200

4′×656′

0.430

930×175

0.017″

3′×574′

1220×175

4′×574′

0.500

930×150

0.020″

3′×492′

1220×150

4′×492′
